Description

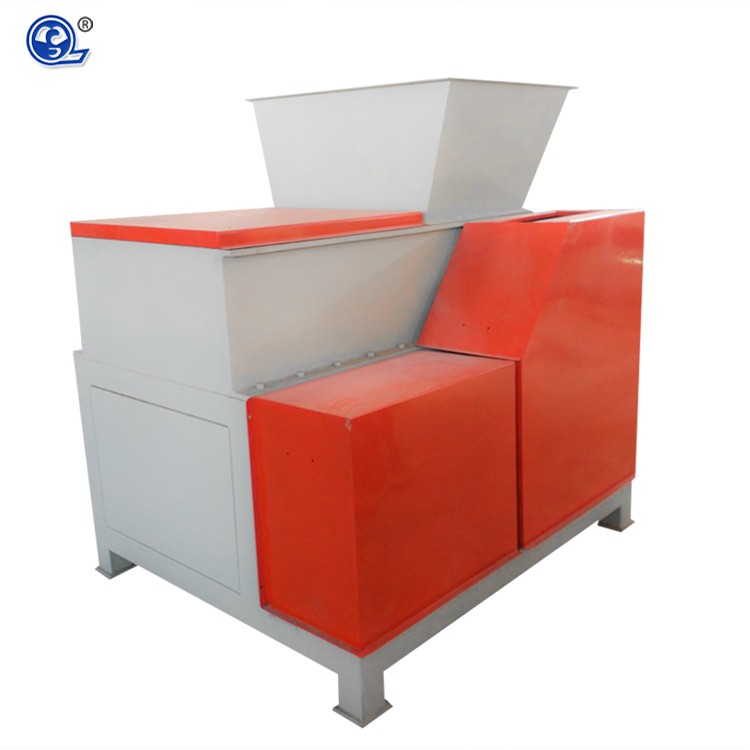

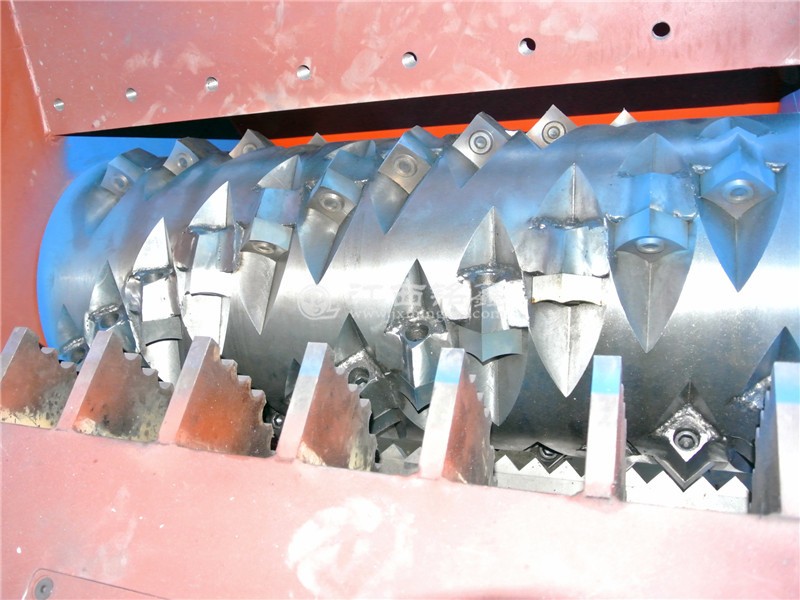

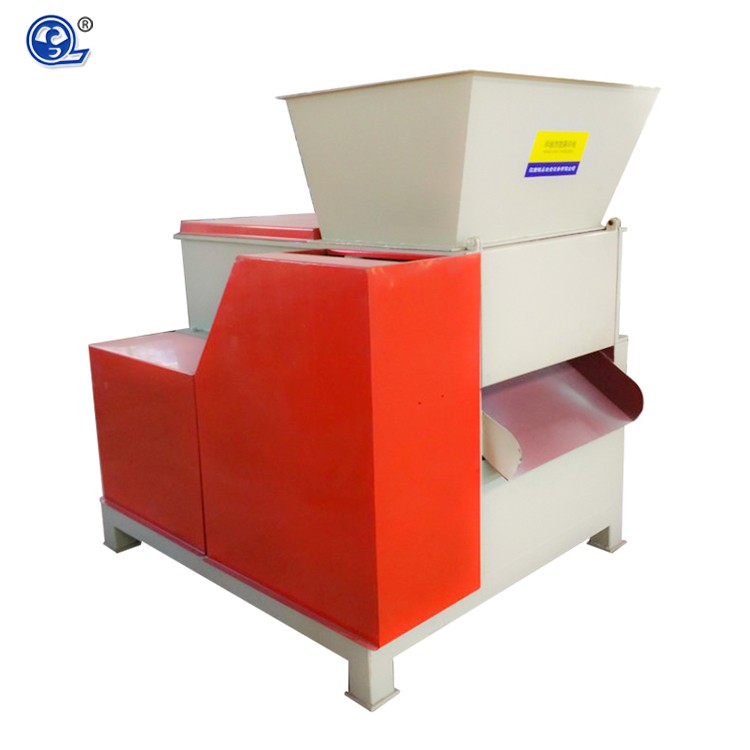

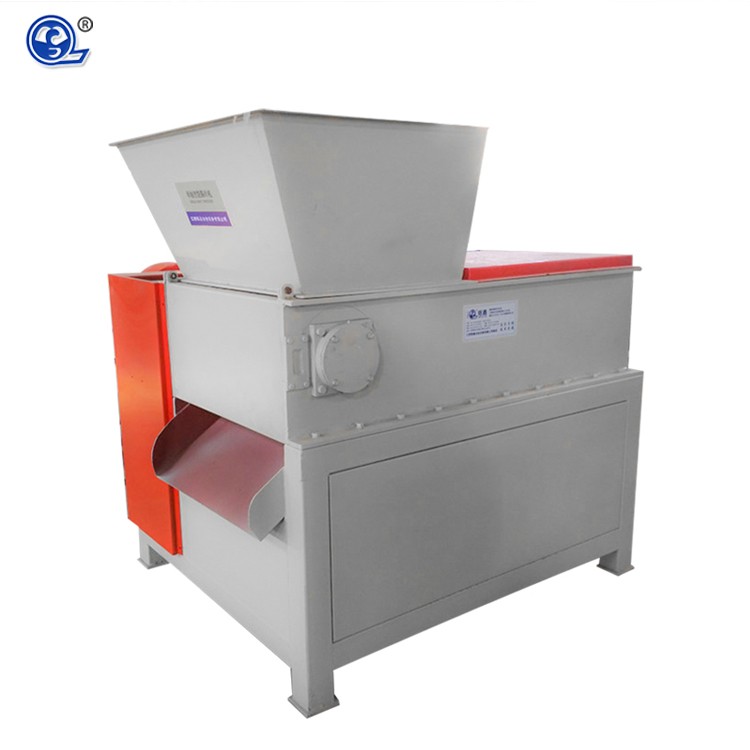

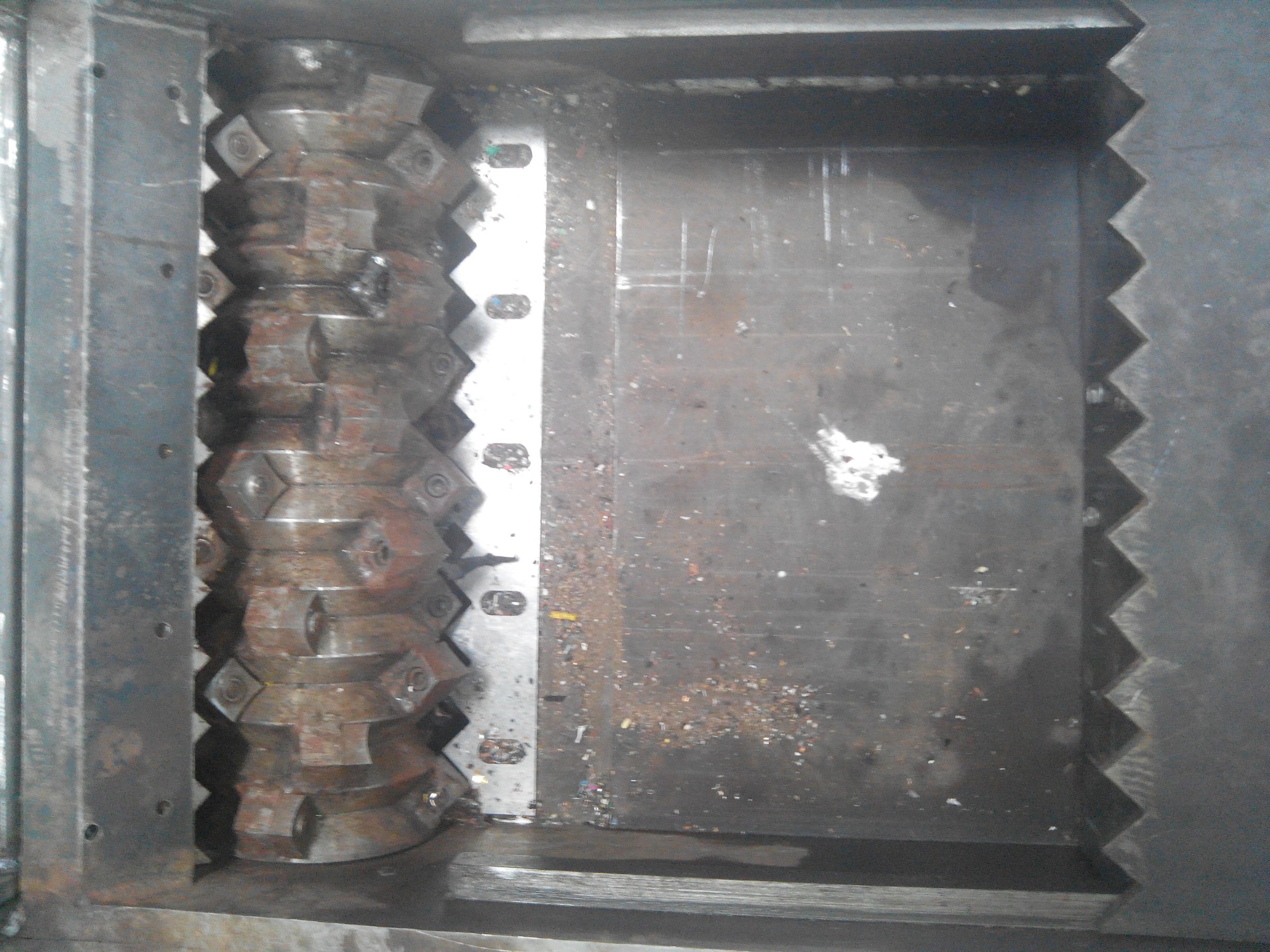

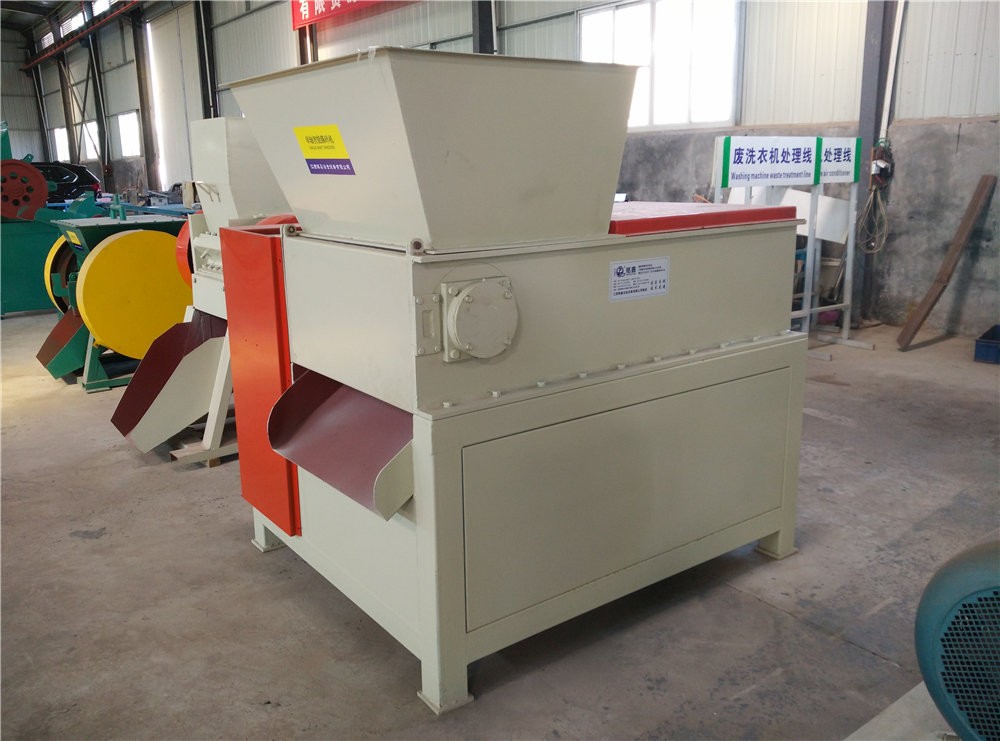

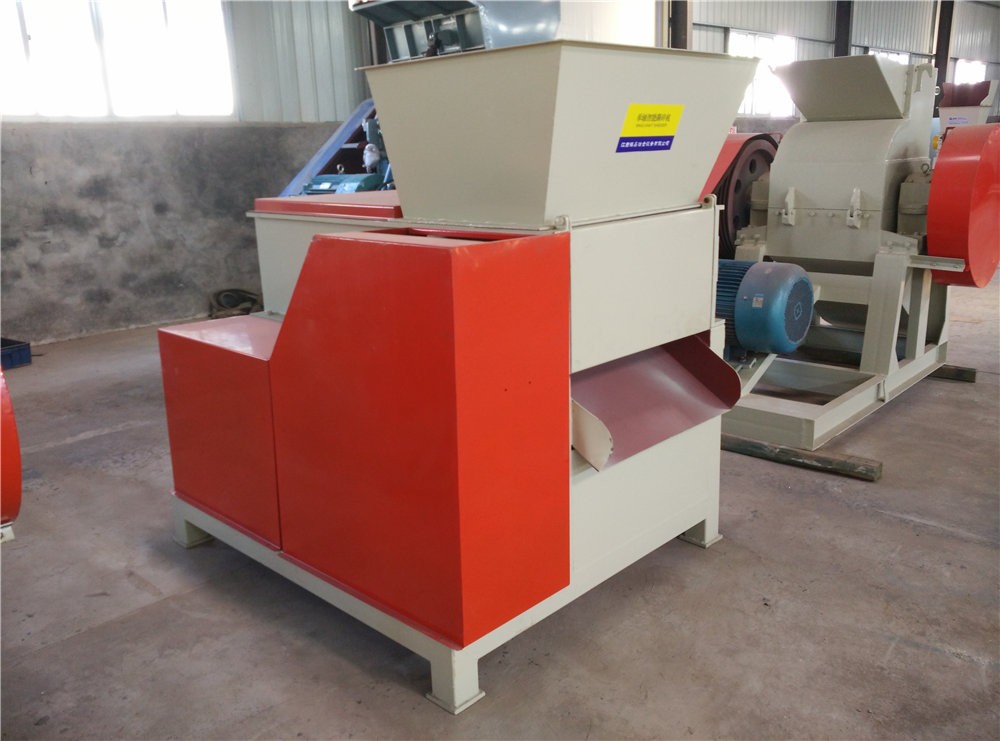

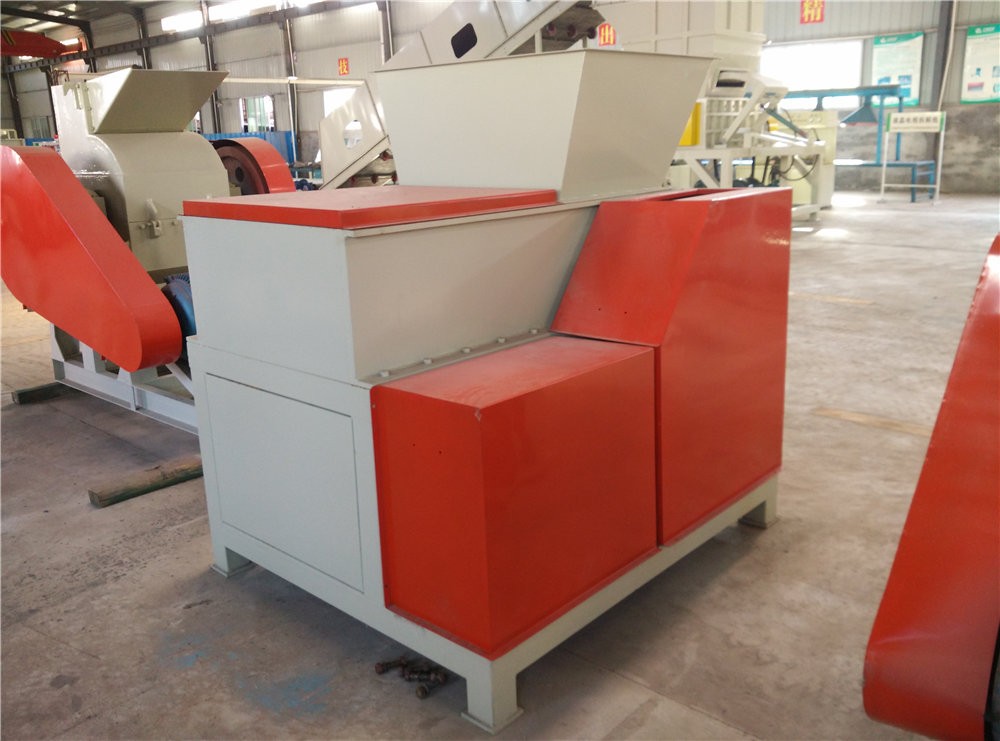

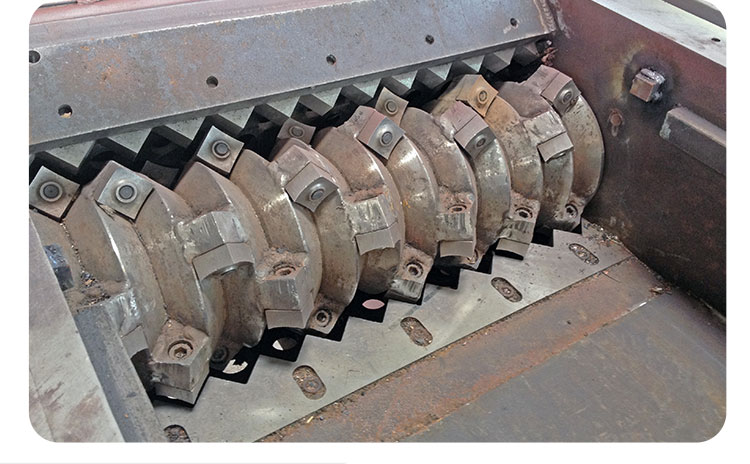

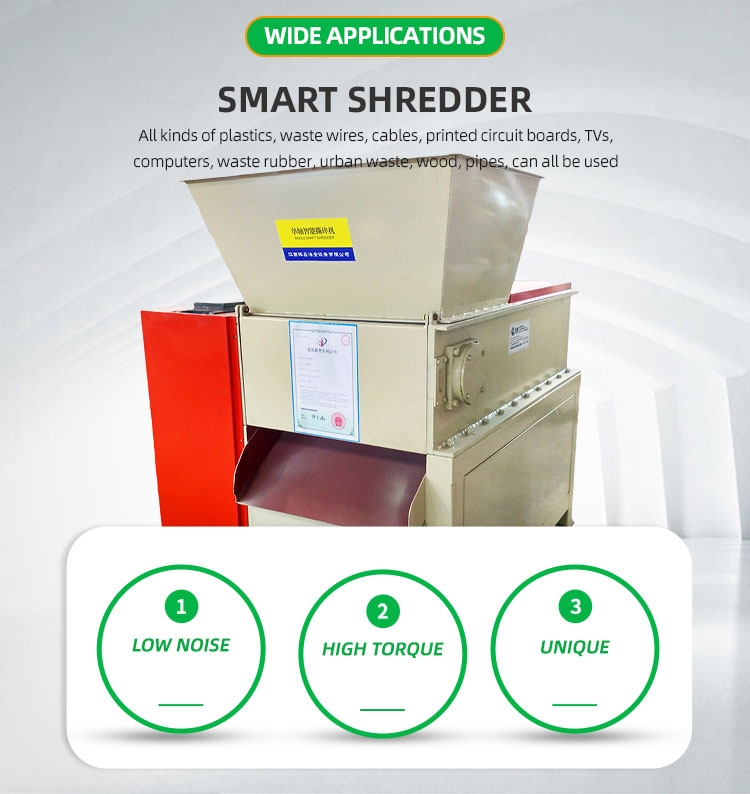

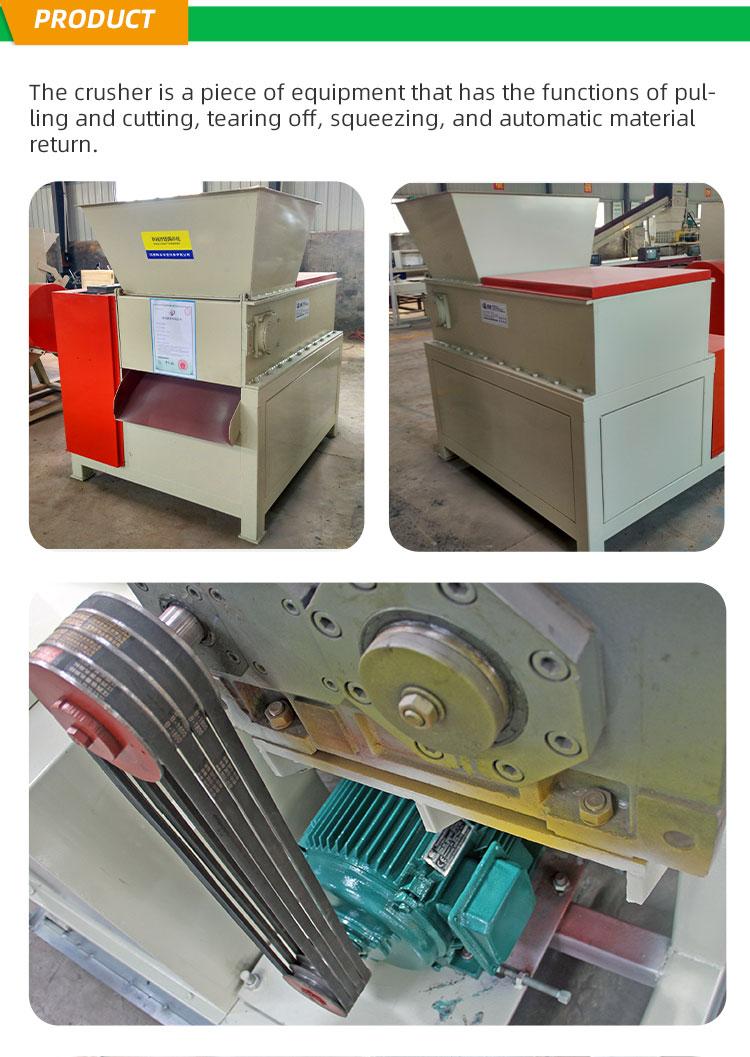

Mingxin Series Single Shaft Shredder is mainly composed of main shaft, blade, fixed knife, box, feeding system, pushing system, power system and so on. It is the use of dynamic knife and fixed knife interaction, and through the screen to control the size of the discharge, the material will be torn, shear, extrusion processing to a smaller size. It is often used for the primary crushing of various plastic solid wastes, and can process the materials to a smaller size at one time. It is characterized by controllable discharge size, wide applicability of materials and high efficiency.
Specification
| Model | MX-V600 | MX-V800 | MX-V1200 |
| Feeding Size (mm) |
620*680 |
810*750 |
1210*750 |
| Power (Kw) |
22 |
30 | 37 |
| Blade | 38 | 50 | 71 |
| Capacity (Kg/Hr) | 300-500 | 500-800 | 1500 |
